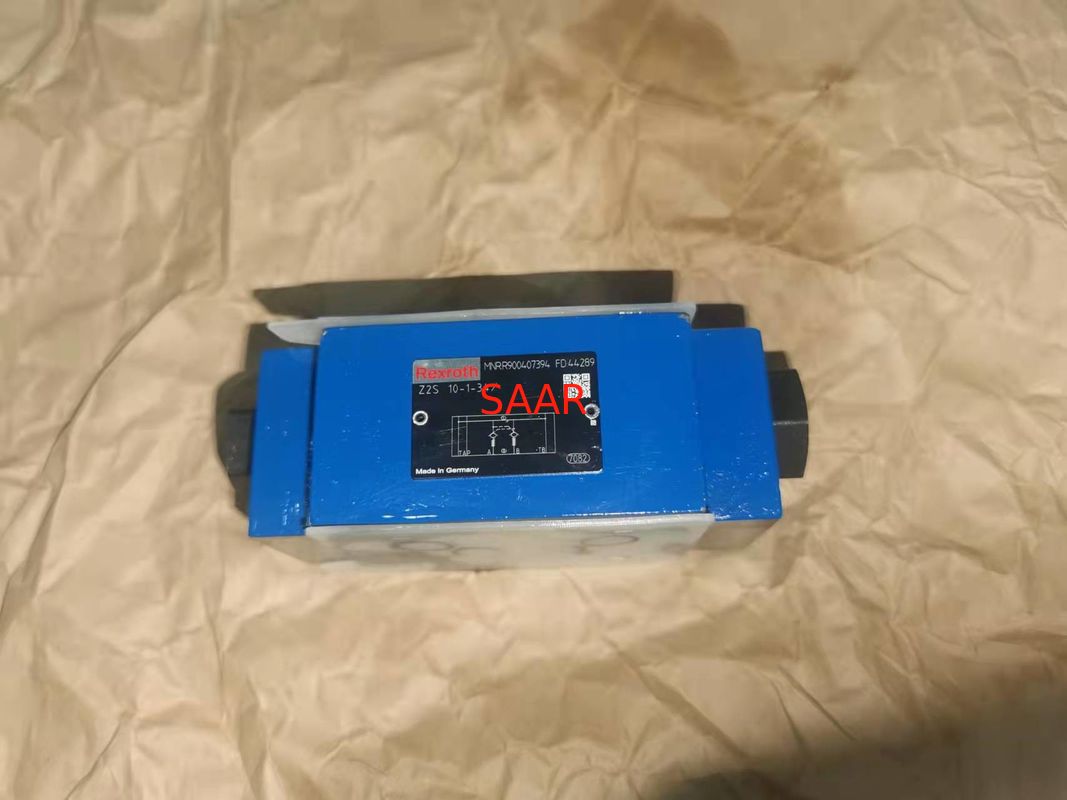

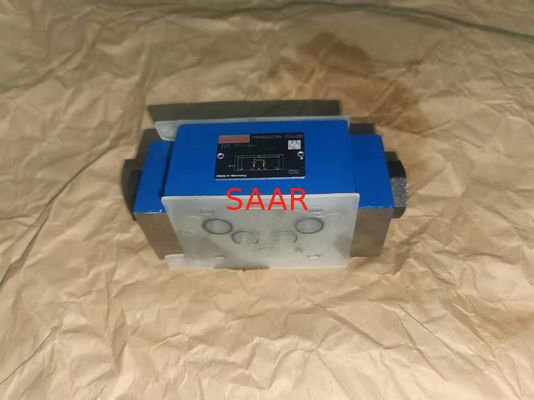

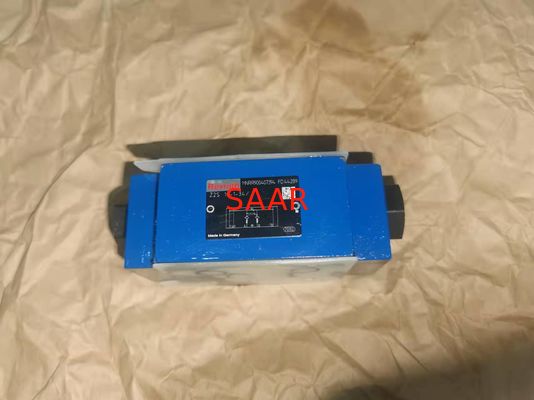

Name: Pilota Operated Check Valve di Rexroth R900407394 Z2S10-1-34/Z2S10-1-3X/
Brand: Saar HK Electronic Limited
SKU: R900407394 Z2S10-1-34/Z2S10-1-3X/
Price: Negoziabile USD
Availability: InStock

Casa Prodotti Rexroth valvole idrauliche

Pilota Operated Check Valve di Rexroth R900407394 Z2S10-1-34/Z2S10-1-3X/

Dettagli:

Luogo di origine:	La Germania
Marca:	Rexroth
Numero di modello:	R900407394 Z2S10-1-34/Z2S10-1-3X/

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	On request
Imballaggi particolari:	SSAARola di carta standard
Tempi di consegna:	7-10days
Termini di pagamento:	T/T, Western Union
Capacità di alimentazione:	100PCS al mese

Contatto

Descrizione di prodotto dettagliata

Modello:

R900407394

MNR:

Z2S10-1-34/ Z2S10-1-3X/

Evidenziare:

Valvole idrauliche di R900407394 Rexroth

ISO9001 pilota Operated Check Valve

Pilota Operated Check Valve di Rexroth

Check valves, pilot operated Z2S10

Size 10
Component series 3X
Maximum operating pressure 315 bar
Maximum flow 120 l/min

Features

Sandwich plate valve for use in vertical stackings
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05
For the leakage-free blocking of one or two actuator ports, optional
Various cracking pressures
With pre-opening (standard); without pre-opening (optional)
Check valve installation sets available individually
Corrosion-protected design

Type Code:

01	02	03	04		05		06	07	08	09	10	11
Z2S	10			–	3X	/						*

01	Check valve, Sandwich plate design	Z2S
02	Size 10	10
Leakage-free blocking
03	In channel A and B	–
	In channel A	A
	In channel B	B
Cracking pressure
04	1,5 bar	1
	3 bar	2
	6 bar	3
	10 bar	4
05	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Corrosion resistance (outside; thick film passivation according to DIN 50979 – Fe//Zn8//Cn//T0)
06	None (valve housing primed)	no code
06	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Seal material
07	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Additional pilot oil ports X and Y ¹⁾
08	Without X and Y	no code
08	With X and Y	XY
Spool position monitoring ²⁾
09	Without position switch	no code
	- Inductive position switch type QM (Version "3" only)
	Monitored spool position "a"	QMA
	Monitored spool position "b"	QMB
Special version
10	Without	no code
	Check valve with stroke limitation	SO14
	Control open by external port G1/4 (only version "A" and "B")	SO40
	Without pre-opening	SO41
	Control spool unloaded to port T	SO60
	With pre-opening and control open from channel P	SO150
	Symbols (examples) see "Symbols/Circuit diagrams"
11	Further details in the plain text	*

¹⁾	With version "SO150", ports X and Y are already in place. (No ordering code required)

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated Z2S10 Model List:

R900407394	Z2S10-1-3X/
R900438180	Z2S10-1-3X/J
R901436572	Z2S10-1-3X/J3
R900437771	Z2S10-1-3X/JV
R900407439	Z2S10-1-3X/V
R900576597	Z2S10-1-3X=
R900421985	Z2S10-2-3X/
R900902866	Z2S10-2-3X/J
R901140423	Z2S10-2-3X/JV
R900507607	Z2S10-2-3X/SO32
R900436801	Z2S10-2-3X/V
R901404994	Z2S10-2-3X/VSO150
R901436574	Z2S10-2-3X/VJ3
R900431003	Z2S10-3-3X/
R900440349	Z2S10-3-3X/V
R900420049	Z2S10-4-3X/
R901393675	Z2S10-4-3X/=NE
R901052092	Z2S10-4-3X/=TA
R901330981	Z2S10-4-3X/SO150
R900506366	Z2S10-4-3X/V
R900407424	Z2S10A1-3X/
R900584523	Z2S10A1-3X/J
R901436573	Z2S10A1-3X/J3
R900407440	Z2S10A1-3X/V
R900503728	Z2S10A1-3X/VSO49
R900434028	Z2S10A2-3X/
R900591534	Z2S10A2-3X/J
R900436812	Z2S10A2-3X/V
R900437010	Z2S10A3-3X/
R900447732	Z2S10A3-3X/
R900468484	Z2S10A3-3X/V
R900516212	Z2S10A4-3X/
R900567281	Z2S10A4-3X/V
R901425743	Z2S10A4-3X=J3
R900407434	Z2S10B1-3X/
R900464449	Z2S10B1-3X/J
R900583942	Z2S10B1-3X/SO18
R900407465	Z2S10B1-3X/V
R901424397	Z2S10B1-3X/V/XY
R900576598	Z2S10B1-3X=
R900435525	Z2S10B2-3X/
R900428795	Z2S10B2-3X/V
R900436800	Z2S10B3-3X/
R900439705	Z2S10B3-3X/V
R900440312	Z2S10B4-3X/
R900519395	Z2S10B4-3X/V
